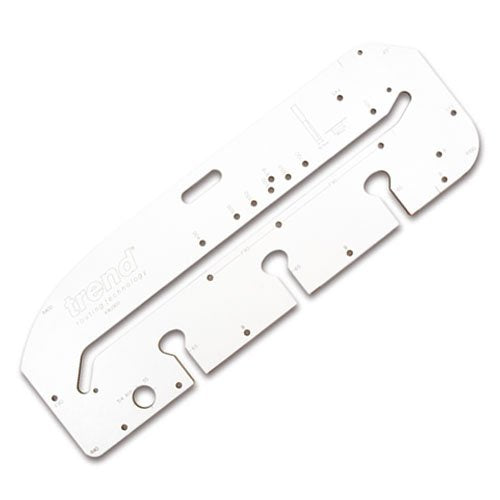

TREND KWJ900 KITCHEN WORKTOP JIG 900MM
Couldn't load pickup availability
- £179.99
-
- £179.99
- Unit price
- per
Please hurry! Only 3 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Description
xTradesman ALL IN ONE work top jig for up to 900mm worktops.
Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.
Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.
Fixed lengths for 400mm, 500mm, 550mm, 600mm, 616mm, 635mm, 650mm, 700mm and 900mm wide worktops.
Cuts up to 40mm thick worktops with or without anti-drip postformed edge.
Three open-ended bolt recesses (dog bone style) for 150mm bolts.
Engraved lines for short 65mm bolts and worktop cross-cut.
10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.
Engraved markings for identification of pin holes.
Pins made from ABS plastic for strength.
Jig requires:
A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
A template guide bush with 30mm outside diameter ref. GB30.
A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
Two clamps.
Dimensions:
Length=1185 mm
Width=390 mm
Thickness=12 mm
Weight=7.7kg
End Cut=45 degrees
Corner Radius=40 mm
Corner Radius=100 mm
Corner Radius=400 mm
Corner Mitre Joint=45 degrees
Female cut material width loss (inset)=35 mm
Bolt recesses=3
Bolt recess centres=300 + 300 mm
Bolt recess width=14 mm
Requires:
Guide bush=30 mm
Plunge router=1/2-inch (min. 1300 watts)
Cutter=12.7 mm x 50 mm cut
Clamps=Two
