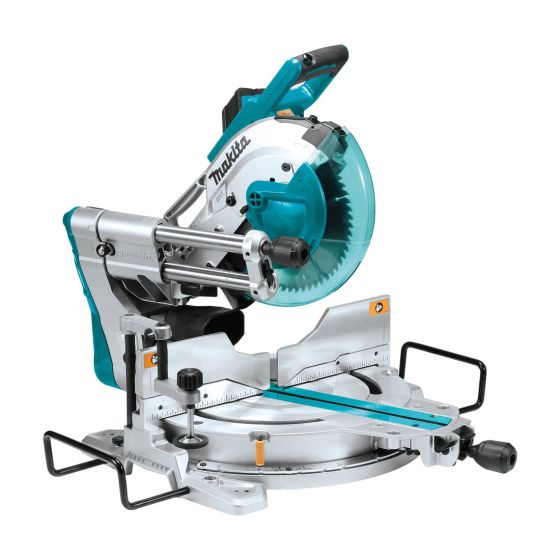

Makita LS1019L 110v 260mm 10 Double Bevel Slide Compound Mitre Saw with Laser

Makita LS1019L 260mm 10" Double Bevel Slide Compound Mitre Saw with Laser Guide

The Makita LS1019L 10‰Û Double Bevel Sliding Compound Mitre Saw with Laser guide combines capacity, accuracy and efficient dust extraction in a more compact size, with a unique 2-Steel Rail Sliding System that offers a reduced footprint for operation flush against a wall. The innovative direct-drive gearbox and guard system is engineered for increased vertical cutting capacity - the largest in its class. The saw mitres 0¡ to 60¡ left and right, with positive stops at 0¡, 15¡, 22.5¡, 31.6¡, 45¡ and 60¡ (left or right). The bevel lock is located in the front of the saw for easy access and quick adjustments from 0¡ to 48¡ (left and right).

The saw is powered by a 15 AMP direct drive motor with soft start, a key point of difference. Direct drive enables smoother start-ups and consistent, constant power with no belts to slip or replace. The electric brake provides added convenience. In addition, the electronic speed control maintains constant speed under load for smoother, higher-quality cutting.

Additional features include a see-through blade guard system for greater visibility of the blade and line-of-cut. The built-in laser indicates the line-of-cut whether the blade is turning or not, and offers micro-adjustments for precise ‰ÛÒleft-of-blade‰Û or ‰ÛÒright-of-blade‰Û cutting. For improved dust extraction it has an improved dust collection capability for use with a bag (included) or extractor (sold separately). It also has a large-sized aluminium base that improves the stability of cutting stock for more efficient cutting.

FEATURES

• Unique 2-Steel Rail Sliding System design offers single slide-glide operation; reducing saw's footprint and allowing operation flush against a wall
• Increased capacity for up to 12" crosscuts at 90¡
• In-front bevel lock for convenient operation
• Dual dust collection ports provide excellent dust extraction performance
• Innovative direct drive motor and guard system is engineered for increased vertical cutting capacity
• Linear ball bearing system engineered to deliver "dead-on" accurate cuts
• Less weight (26.3 Kg) and the most compact design in its class for easy jobsite portability
• Powerful 15.0 AMP direct drive motor requires less maintenance and delivers 3,200 RPM
• Large-sized aluminium base improves stability of material for efficient cutting
• Soft start suppresses start-up reaction for smooth start-ups and longer gear life
• Mitres 0-60¡ left and right; bevels 0-48¡ left and right
• Positive mitre stops at: 0¡, 15¡, 22.5¡, 31.6¡, 45¡, and 60¡ left or right
• Electronic speed control maintains constant speed under load for smoother, higher quality cutting
• Integrated upper and lower tall fence system offers added rigidity for more precise mitre and bevel cuts
• Built-in laser clearly indicates line-of-cut whether blade is turning or not; on-off switch and micro-adjustments for precise "left-of-blade" or "right-of-blade" cutting
• Ergonomic rubberised horizontal D-handle design for better fit and added comfort
• Replaceable stainless steel mitre scale features large and easy-to-read markings
• Easy-to-read double bevel scale for more precise adjustments
• See-through blade guard system for greater visibility of blade and line of cut
• Easy blade changes for increased efficiency
• Oversized trigger switch for better fit, added comfort and easier operation
• Easy one-touch slide lock for convenience
• Simple 90 turn-of-the-knob mitre angle lock/unlock mechanism
• DXT (Deep and Exact Cutting Technology)

CUTTING CAPABILITIES (H x W)

SPECIFICATION

• Input Wattage: 1,510 W
• Blade Diameter: 260 mm
• Bore Diameter: 30 mm
• No Load Speed: 3,200 rpm
• Max Mitre Range: 60¡to 60¡(L-R)
• Max Bevel Range: 48¡to 48¡(L-R)
• Net Weight: 26.3 Kg

NOISE and VIBRATION

• Sound Pressure: 91 dB(A)
• Sound Power: 101 dB(A)
• Sound K Factor: 3 dB(A)
• Vibration: 2.5 m/s
• Vibration K Factor: 1.5 m/s

110v

What's Included

• 1x LS1019L Mitre Saw
• 1x Vertical Vise (122854-6)
• 1x Dust Bag (122852-0)
• 1x Triangular Rule (762001-3)
• 1x 45T Efficut Blade (B-64624)
• 1x Hex Wrench (781044-6)
