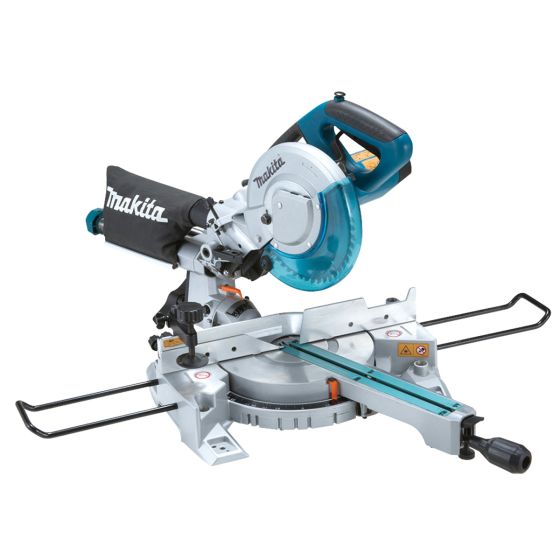

Makita LS0815FLN/1 Slide Compound Mitre Saw 216mm with Laser Guide 110v

Makita LS0815FLN Slide Compound Mitre Saw 216mm with Laser Guide

The new Makita LS0815FL 216mm slide compound mitre saw has a features list ideally suited to first and second fix on-site carpentry operations.

It is a 216mm (8-1/2") cost-effective slide compound mitre saw with an integrated laser marker, LED job light and a maximum mitre range of 45-60Á. With positive stops at 0, 15, 22.5, 31.6 and 45Á which make mitre and repeat settings simple and quick. Four steel bars with 6 linear ball bearings are used for smooth and precise sliding action. A soft start 1,400W motor provides the power which will run the blade up to 5,000rpm without load.
The rigid, cast alloy base and twin parallel slides give a high level of accuracy with the blade at any angle. Saws with slides above each other as opposed to side by side as on the LS0815FL, prove to be inaccurate as the drive head has a tendency to tilt the slides into a curved track. Twin material support bars are fitted either side of the base plate which also has a left side sub fence with a fixed fence on the right side. The stock clamping post can be fitted to either side. A soft grip handle is provided for ease of transportation.
Weighing in at 14.2kg, it's relatively easy to move around the workshop or site. A sliding sub-fence is fitted on the left hand side as well as work supports on each side.

FEATURES

• Soft start
• Soft grip handle
• Built in laser guide
• LED job light
• Sliding sub fence (Left side only)
• High cutting capacity
• Lightweight and portable at 14.5kg for easy site transport
• Holder can be attached to both sides of base

SPECIFICATION

• Voltage: 110v / 240v
• Laser Type: Red Laser 650 nm, <1 mW (Laser Class 2)
• Blade Diameter: 216 mm
• Blade Body Thickness: 1.5 mm - 2.5 mm
• Bore (Arbor) Diameter: 30 mm
• Max. Mitre Angle: Left 50Á / Right 60Á
• Max. Bevel Angle: Left 48Á / Right 5Á
• No Load Speed: 5,000 rpm
• Dimensions (L x W x H): 755 mm x 450 mm x 488 mm
• Net Weight: 14.2 kg

MAKITA IS0815FL CUTTING CAPABILITIES (H x W)

MAKITA CHOP SAW NOISE & VIBRATION

• Noise Sound Pressure: 87 dB(A)
• Noise Sound Power: 110 dB(A)
• Noise K Factor: 3 dB(A)
• Vibration K Factor: 1.5 m/sec_
• Vibration No Load: 2.5 m/sec_

Available In 110v

What's Included

• 1x LS0815FLN Mitre Saw
• 1x Vertical Vice
• 1x Dust Bag
• 1x Socket Wrench
• 1x Holder Set
• 1x Triangular Rule
• 1x TCT Saw Blade
• 1x Hex Wrench
