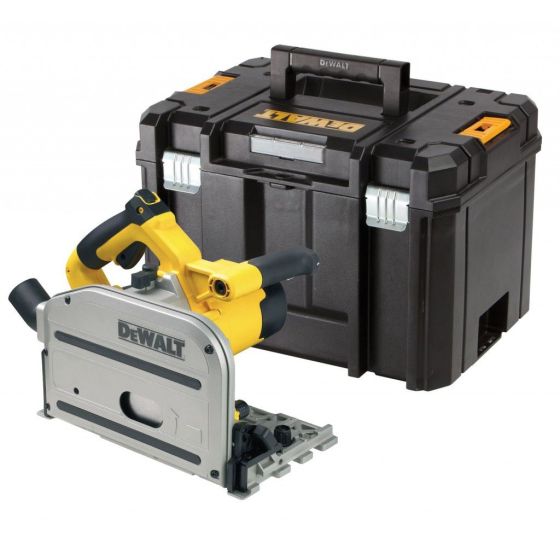

DeWalt DWS520KT Plunge Saw in TSTAK Carry Case

DeWalt DWS520KT Plunge Saw in TSTAK Carry Case

The DeWalt DWS520 Plunge Saw offers a simple and effective solution to a wide range of applications including laminate cutting and door trimming. Extremely high levels of accuracy, finish and durability make the DWS520KT the popular choice for multiple trades. Includes TSTAK VI carry case.

FEATURES

• Parallel plunge allows the user to maintain a smooth and constant hand position while cutting
• A 48 tooth blade gives a fine and accurate finish with very little breakout in laminates
• Rail adjustment allows the saw to be adjusted accurately to the rail
• The anti kickback function stops the saw from moving backwards along the rail and helps stop the saw from climbing out of the work piece when making plunge cuts
• Variable speed allows the correct speed to be set for different types of materials
• Full wave electronics maintains a constant speed under heavy load
• The enclosed guard gives a 90% dust extraction capability
• 55mm depth of cut allows the trimming and sizing of most common door sizes

SPECIFICATION

• Power Input: 1300 Watts
• Power Output: 690 Watts
• No Load Speed: 1750 _- 4000 rpm
• Blade Diameter: 165 mm
• Blade Bore: 20 mm
• Bevel Capacity: 47 ç
• Max. Depth of Cut at 90_: 59 mm
• Max. Depth of Cut at 90_ [with guide rails]: 55 mm
• Max. Depth of Cut at 45_: 44 mm
• Max. Depth of Cut at 45 _ [with guide rails]: 40mm
• Weight: 5.1 kg
• Length: 303 mm
• Height: 265 mm

NOISE & VIBRATION

• Hand/Arm Vibration: 2.5 m/s_
• Uncertainty K 1 (Vibration): 1.5 m/s_
• Sound Pressure: 92 dB(A)
• Sound Pressure Uncertainty: 3 dB(A)
• Sound Power: 103 dB(A)
• Sound Power Uncertainty: 3 dB(A)

Available In 110v & 240v

what's in the box

• 1x DW520 Plunge Saw
• 1x TSTAK VI Carry Case
• 1x Precision Saw Blade (48 Tooth)
